Description
Fully automatic obstacle clearance, 20 cm
Equipped with an AI-powered visual intelligence obstacle-crossing perception system, it fully automates the extension and obstacle-crossing operation.
Deep Cleaning System
High-speed, high-density rolling brush + dual scraping strips + misting spray, a three-in-one physical contact cleaning system; It features a built-in independent chemical reservoir, supporting the addition of detergents to achieve deep cleaning through chemical formulas.
Integrated water and electricity system
The entire unit features an integrated water and electricity system, eliminating the need for external auxiliary equipment. The body is equipped with a mobile roller, making it easy to handle and enabling faster on-site deployment.
Pioneering vertical frame cleaning function
Overcoming the cleaning blind spots of traditional equipment, it enables the cleaning of the inner sides of curtain wall decorative strips, solving the challenge of inaccessible cleaning in the inner areas that conventional machines cannot reach.
Intelligent adaptation across multiple scenarios
Adaptive retractable roller brush, with an adjustable working width of 0.8–1.5 meters, compatible with various types of curtain walls.
All-dimensional security redundancy protection
Triple backup protection: dual safety ropes for physical protection, software fall detection, and automatic locking upon power failure; The entire unit features an IP54 protection rating, while the core motor has an IP65 rating, ensuring reliable performance in complex outdoor conditions.
SPECIFICATION
Model: Lingfeng YS-1
Dimensions: Folded size (including roller): Length 1500 × Width 760 × Height 800mm
Expanded dimensions (including the roller brush): Length 1880 × Width 760 × Height 800mm
Net Weight of the equipment: 75 kg (excluding utilities)
Working Height: 300 meters
Operating Slope: 90°
Obstacle-Crossing Ability: 20 cm
Movement Speed: ≤0.2 m/s
Rated power: 800W
Operating voltage: 48V
Endurance time: 3H/Battery(±30%)
Cleaning width: 0.8 meters to 1.5 meters
Cleaning efficiency: ≤550 m²/h
Operating Temperature: 5~55°C
Waterproof: IP54
Power supply: Built-in removable battery, 48V 50AH.
Water Supply: 40L water tank
Water consumption: ≤1.8 L/min
Built-in cleaning fluid tank: 2L
Power failure protection: self-locking device

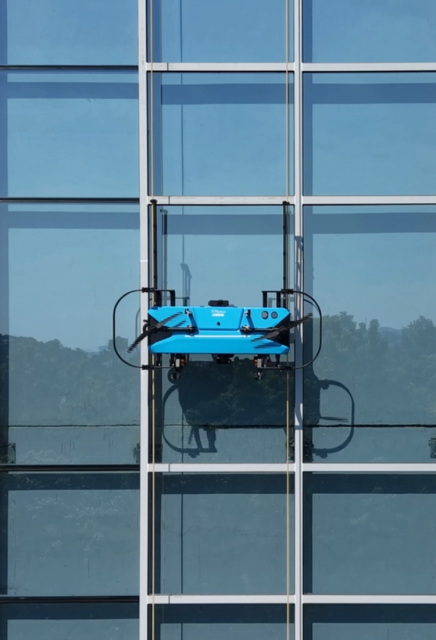

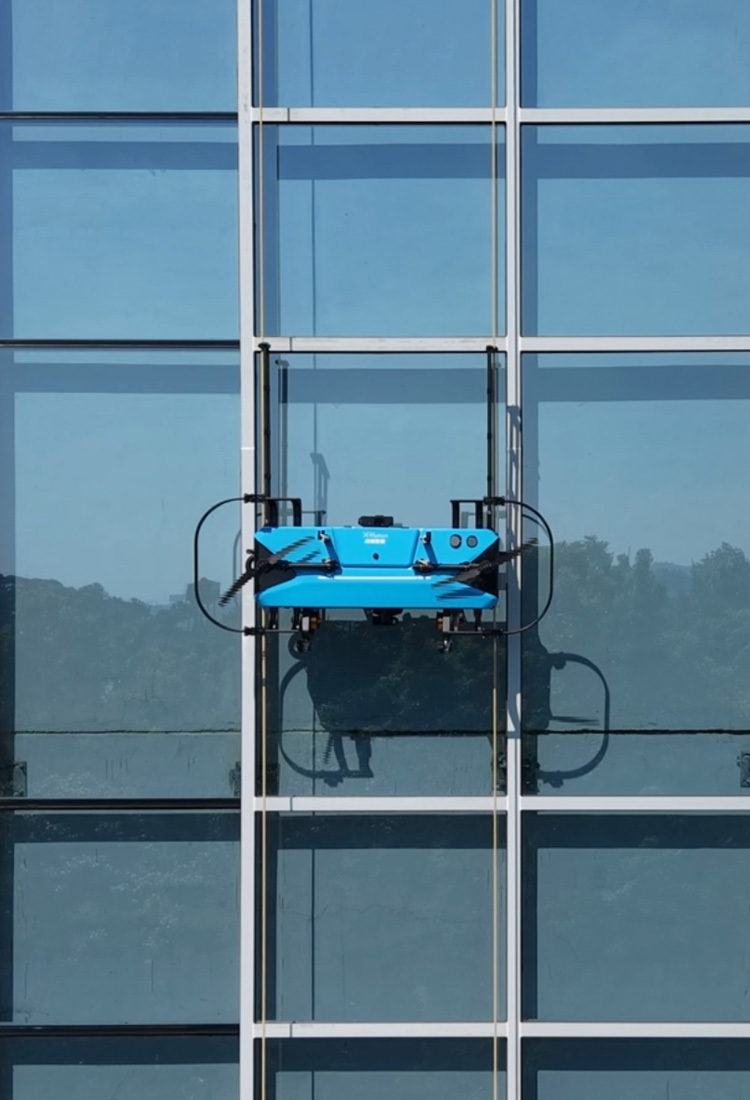

Applicable Scenarios: Exterior buildings with non-curved glass, metal, stone, or tile curtain walls.
Control mode: Fully automatic/Manual
