Description
40cm Obstacle Crossing
Wheeled design, easily overcomes frames
High Efficiency
4m body for wider cleaning coverage
Dual Tether System
Continuous water & power for non-stop operation

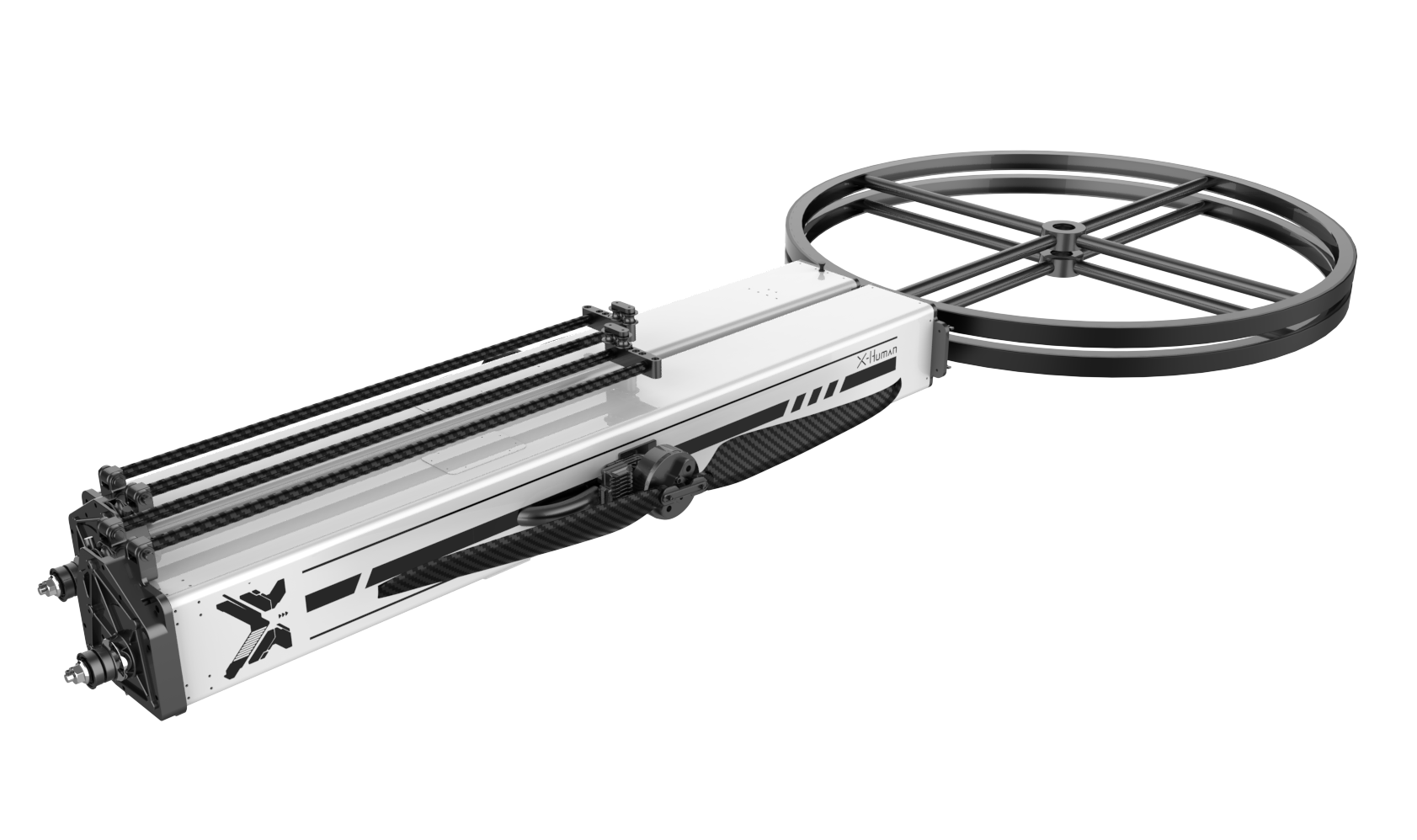

Foldable Body
Modular design, easy storage & transport
High-pressure Cleaning
High-pressure multi-jet cleaning, zero blind spots
Highly Adaptable
Suitable for glass facades, ACP panels, marble, and tiles
SPECIFICATION

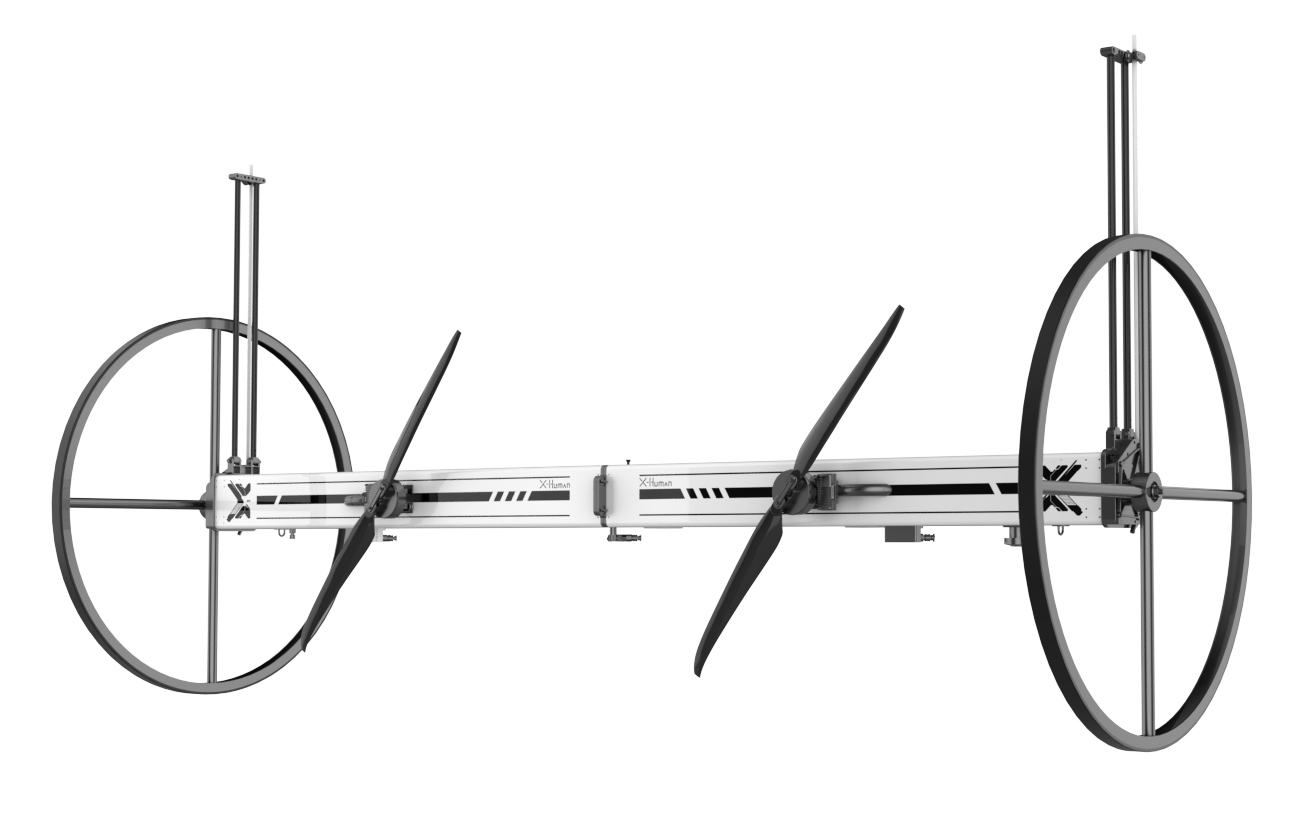

Version: LINGFENG S1
Dimensions: 4240*1540*1540 mm (Expanded）、2160*370*350mm (Folded)
Weight: 105KG (excluding Water pipes and cables)
Maximum load weight: 100KG
Operating height: below 150m
Operating Slope: 0~90°
Obstacle-Crossing Ability: 40cm
Travel Speed: 0.5m/s
Cleaning Efficiency: 1000㎡/h
Minimum Glass Thickness: 5 mm
Cleaning Width: 4000mm
Power supply: External 380V AC three-phase five-wire system (three-phase line + neutral line + ground line), ensuring the power supply capacity at the power source is not less than 20KVA
Rated input voltage: Three-phase 380Vac/440Vac
High-pressure pump outlet pressure: Max 25 MPa
Max wind resistance: Level 5
Rated power: Main unit 6kW, water pump truck 11kW
Operating Temperature: 0-55°C
Protection Rating: IP55
Water consumption: Maximum 25L/min
Water Supply: High-pressure water pump
Power Failure Protection: Self-locking device
Applicable Scenarios: Non-curved glass/marble /aluminum composite panel/tile surface, etc.
Control Mode: Fullyautomatic/Manual
