Description
Strong Adhesion
Negative-pressure suction cups firmly attach to glass facades for stable support.
Flexible Mobility
Freely moves on vertical and inclined surfaces to cover all cleaning areas.
Comprehensive Cleaning
Tackles dust, stains, stubborn dirt, and debris in corners and gaps.
Intelligent Navigation
Automatically plans optimal paths and avoids blind spots for full facade coverage.
Multiple Safety Measures
Dual batteries, suction systems, and safety ropes ensure reliable operation.
Chain-Break Protection
Stops and alerts automatically in case of communication loss or abnormalities.
Automatic Obstacle Crossing
Smoothly crosses joints, seals, and small obstacles without interruption.
Lightweight & Modular Design
Easy to transport, maintain, and replace components, reducing costs.
Long Battery Life
Up to 4 hours of continuous operation with optimized energy management.
SPECIFICATION

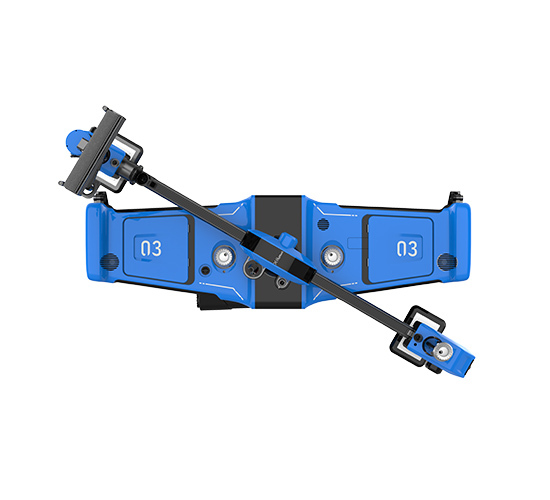

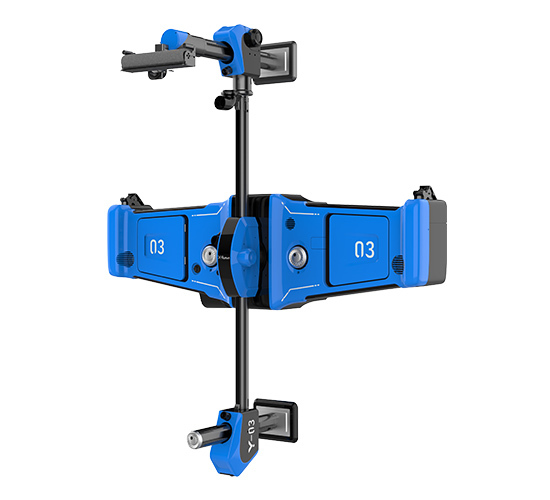

Model: Lingyun Y3
Dimensions: 2070mmx1830mmx890mm（Expanded）、1260mmx1830mmx620mm（Folded）
Weight: 90KG (excluding batteries)
Working Height: 600m
Operating Slope: 85~90°
Obstacle-Crossing Ability: 20cm
Travel Speed: 0.2m/s
Cleaning Efficiency: 100~250㎡/h
Minimum Glass Width: 80 cm
Minimum Glass Thickness: 5 mm
Cleaning Width: 345mm
Waterproof: IP54
Power Supply: Built-in batteries (2 × 43.2V 60Ah)
Battery Endurance: ≥ 4hours (two batteries)
Operating Temperature: 0–55°C (when water tank contains water, temperature must not fall below 0°C)
Water Supply: Built-in water recycling tank (15L)
Power Failure Protection: Self-locking device
Applicable Scenarios: Flat glass facades (non-curved)
Control Mode: Fully automatic / Manual
